  Home  >  Automatic Slitting Machine >> YS-350FZ/450FZ Medium Speed Slitting Machine

Name:

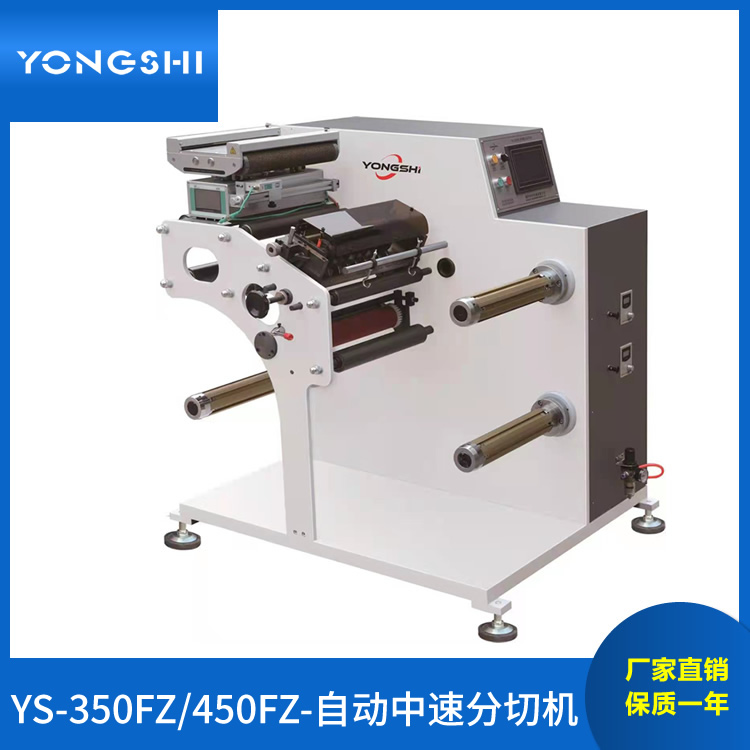

YS-350FZ/450FZ Medium Speed Slitting Machine


  Detailed instructions
SCOPE OF APPLICATION
One researched new product, mostly is used for slitting narrcw roll material, it is for top high level market with full servo driven system, typer tension system, top brand web guiding, turret rewind, it can meter and number counting, static eliminator, no nlaterial nc working etc.
FEATURES
1.Servo control with taper tension system, preset decelarate or stop when less roll detected, web guider with ultrasonic system.
2.Movable eccentric shear slitting in quick installation design. Standard high pressure waste suction system, plus optional razor blade.
3.Taper tension control system, the turret rewinder save halt time for collect the finished roll.
4.Imported Germany made best sensor for counting job, if the transparent film, it needs extra accessories.

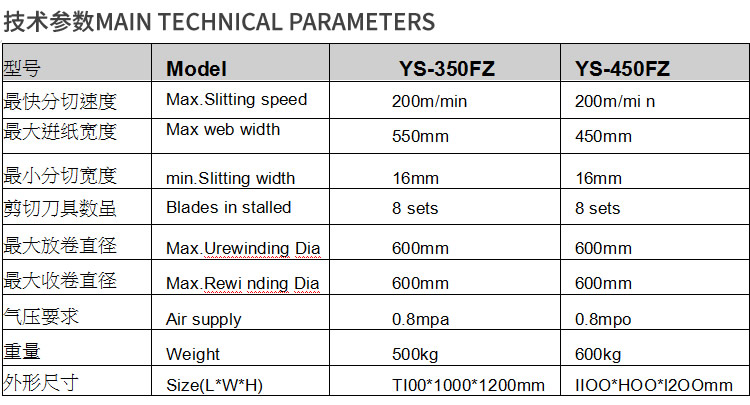

技术参数

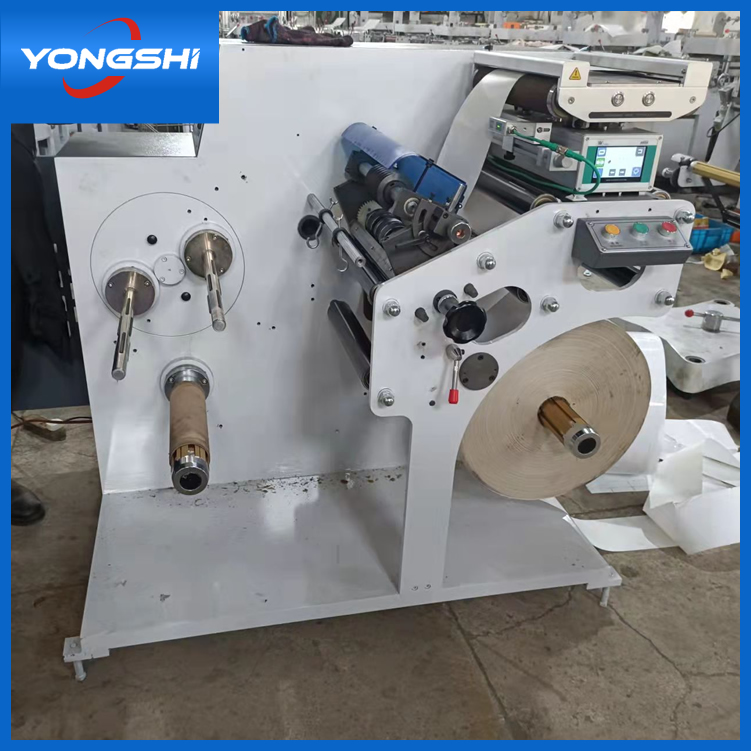

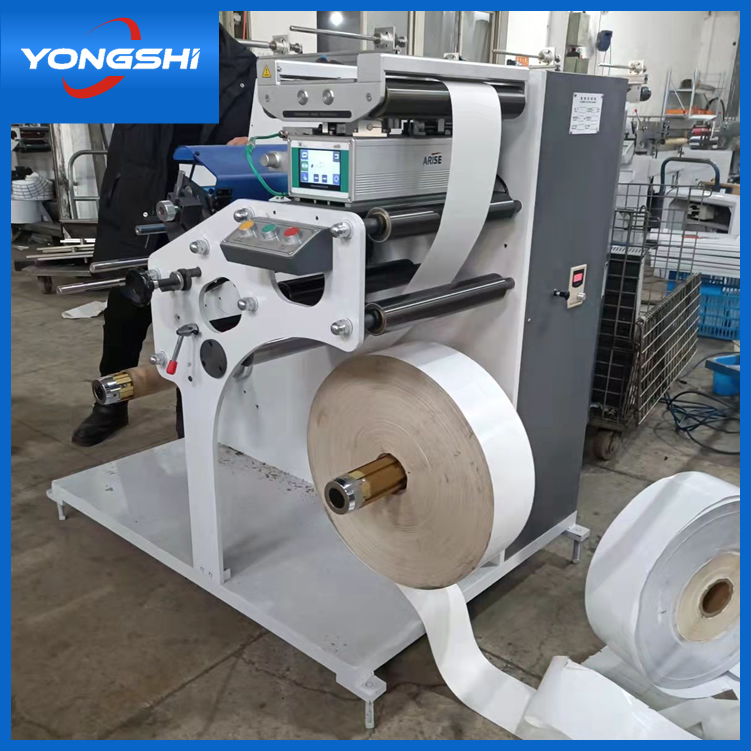

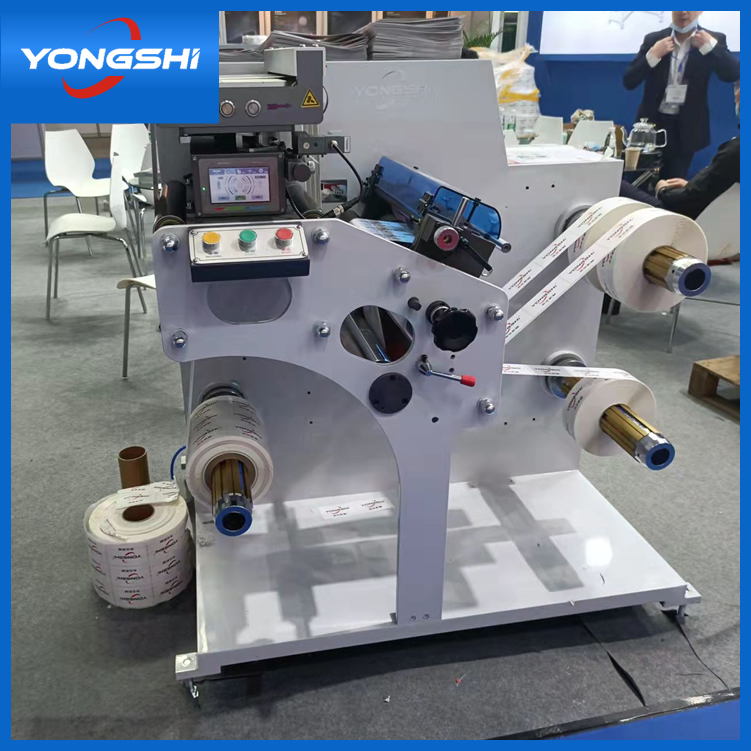

产品实拍图
YS-350FG/YS-450FG高速分切机
YS-350FG/YS-450FG高速分切机
YS-350FG/YS-450FG高速分切机
YS-350FG/YS-450FG高速分切机
样品展示
